3 Axle 40ft Flatbed Semi Trailer
OTTC certified · Direct from factory

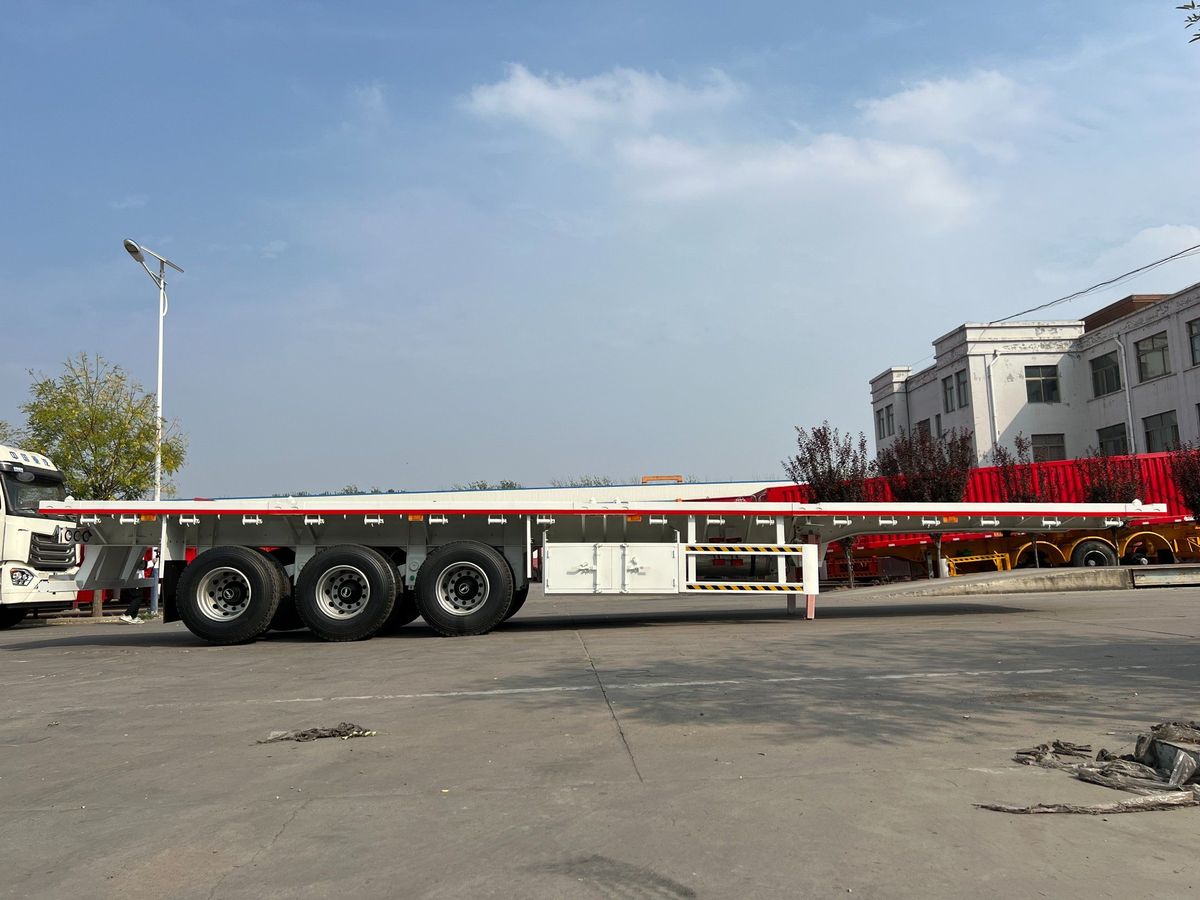

3 Axle 40ft Flatbed Semi Trailer
\nTITAN 3-axle 40ft flatbed semi-trailer is our best-selling model, widely used for 40ft container transport, steel coils, timber, and general cargo. Built with high-strength steel and reliable components for heavy-duty applications.
\n\nKey Features
\n- \n
- High-tensile steel main beam (Q345B/T700) for maximum durability \n
- 3 axle configuration with 13-ton capacity per axle \n
- Standard twist locks for 20ft and 40ft containers \n
- Anti-corrosion painting with 8+ years lifespan \n
- Customizable dimensions, axle brands, and accessories \n
Specifications
\n| Overall Dimension | 12500mm x 2500mm x 1550mm |
|---|---|
| Loading Capacity | 30-60 Tons |
| Axle | 3 units x 13T (BPW/FUWA/HUAJING) |
| Suspension | Mechanical / Air suspension |
| Tire | 12 units, 12R22.5 / 315/80R22.5 |
| King Pin | 2\" or 3.5\" JOST type |
| Landing Gear | JOST type, 28T capacity |
| Brake System | WABCO RE6 relay valve, T30/30 chambers |
| Main Beam | Q345B steel, 500mm H-beam, 14mm web, 18mm flange |
| Floor | 3mm checkered plate / wooden floor |
| Painting | Shot blasting + primer + topcoat |
Applications
\nContainer transport, steel products, timber, machinery, building materials, and general cargo. Ideal for port-to-inland logistics in Africa, Southeast Asia, and Middle East markets.
